Two Color PVC/TPR/TPU/TR Sole Making Machine

FOB Reference Price:Get Latest Price
US $49,000-59,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Production Capacity:
100-200pairs/hour
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Kingstone
Model Number:
JL-109-2C
Voltage:
220v/380v/440v
Power(W):
59KW
Dimension(L*W*H):
7500*3500*2300MM
Weight:
13TONS
Certification:
CE SGS, CE Approved
Warranty:
2 Years, 2 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Two Color PVC/TPR/TPU/TR Sole Making Machine
Type:
sole making machine
Application:
Making high quality sole
Color:
see the true product
Material:
TPU, TPR, TR, PVC
Recyclable:
Yes
Environmental:
Yes
SupplyAbility
SupplyAbility:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Professional standard export package for Two Color PVC/TPR/TPU/TR Sole Making Machine
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
25 -45 days

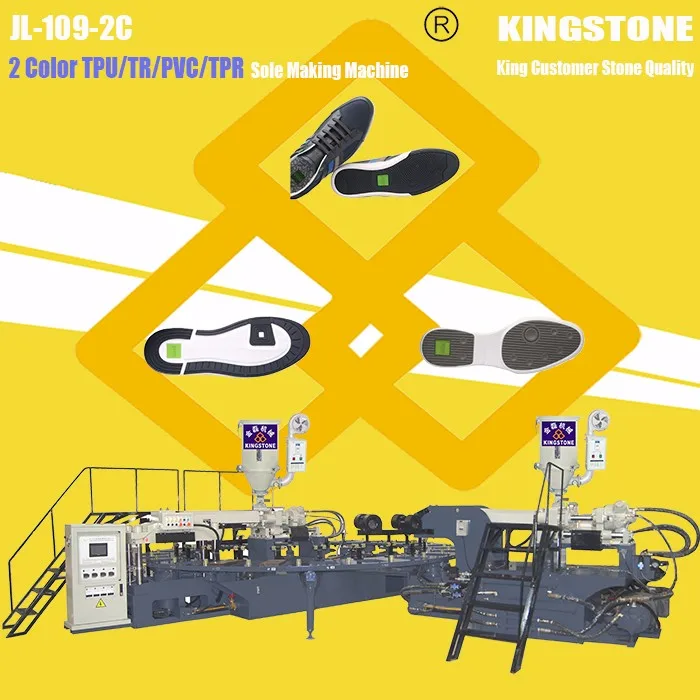

JL-109-2C Two Color PVC/TPR/TPU/TR Sole Making Machine







Product Description
What details of our sole making machine?

1. The machine can produce one color and two color shoe soles, outsoles.

2. Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as TPU, TR, PVC and TPR.

3. It has 12/16/20/24 workstations for your choose.
4. Conformed to human engineering in design, it features operational compatibility.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

6. It could be equipped with servo system and it can save 30~40% electricity.
What Specifications of our sole making machine?

1. Technical Parameters

Machine model JL-109-2C
Mould-clamping Unit
Work station 20
Clamping forceTON120
Opening strokeMM210
Mould dimensionMM420*280
Height of injection nozzleMM280
Injection Unit
InjectorSET2
Screw diameterMM60,55
Screw L/D ratioL/D20
Max. injection volumecm3700,600
Injection speedCm/s500
Screw rotation speedR.P.M10
Electricity Consumption
Heating power of injectorKW7*2
Hydraulic unit motorKW22.5*2
Total electric consumptionKW59
Temperature controlSection4*2
*Note: Above data only for reference.
2. Features and Advantages
1. By computer,Electrical box,PLC control---more simple,fast and precision.
2. It could be equipped with air blowing system. --- can produce light weight, particularly the need for reinforced cooling effect.
3. Computerization in analysis and design---the machine is well in stability.
4. Conformed to human engineering in design---it features operational compatibility.
5. It could be equipped with servo system. --- can save 30~40% electricity.
6. It could be equipped with cooling system. --- can cooling the mould and extend the mould life.
7. The well-interconnected oil circuit by electric control --- can reduce waiting time, quicken production rate, and promote productivity.








Finished Products

What products produced by our machine?

Kingstone Machinery is a manufacturer of various kinds of shoe making machine. Different machine for different shoes, please check below, if you has any question, please feel free to conact us.

If you do not know which machine is suitable, please conact us and we will give you some advices.



Below is TPU Shoe soles which can be produced by this machine:



Customer Visting

Pre-Sales Service
1. Inquiry and consulting support, video support.
2. Sample testing support.
3. View our Factory and check our machine.
4. Custom the machine as your requirements.
5. Test the machines and mould before delivery.
6. Stick Marks as your requirements.


After-Sales Service
1. Send engineer to your factory for install the machine.
2. Our engineer will training your workers how to operate machine and maintain machine.
3. Our engineer will training your workers how to make shoes.
4. Any problems for the machine and make shoes, we will reply you asap.

Packaging & Shipping

Trade Terms:

Trade term: FOB,CIF,EXW
Payment terms: T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition: 30% deposit in advance. 70% balance before delivery.
Delivery time: 25-35days working days after deposit.
Packing: One Container for one machine, or Wooden case with machine.
Shipment: By Sea.
