Kingstone 4 Stations Newest Design EVA Slippers Machine

FOB Reference Price:Get Latest Price
US $65,000-78,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Production Capacity:
150-220pairs/hour
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Kingstone
Model Number:
JL-198
Voltage:
220v/380v/440v
Power(W):
108.5KW
Dimension(L*W*H):
7*4.7*3m
Weight:
15 TONS
Certification:
CE SGS
Warranty:
2 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Kingstone 4 Stations Newest Design EVA Slippers Machine
Type:
Full Automatic
Color:
One Color
Workstations:
4 Stations
Injector:
2 Sets
Material:
EVA Granules
Product:
EVA Sole, Slippers, Flip Flops, Boots
Keywords:
EVA Boots Machine
Material Suction Machine:
Equipped with machine
Mould:
One Mould one piece/ one pair
SupplyAbility
SupplyAbility:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package and professional machine package for Kingstone 4 Stations Newest Design EVA Slippers Machine
Port
Guangzhou,Shenzhen,Hongkong
Lead Time :
Shipped in 35 days after payment



JL-198 Kingstone 4 Stations Newest Design EVA Slippers Machine





Product Description


Electric Control Unit

Touch-screen human-machine interface makes the parameter setting fast and easy; electric cabinet is stand-alone to avoid malfunction caused by machine vibration.

Injection Unit

1. The injection system is optimized by a unique screw design with precise temperature control.

2. The repeatability is assured by the precise volumetric control and the proportional valves of pressure and flow.

3. Injection volume is sufficient to meet the production with multi-cavity molds.

4. Equipped with multi-zone thermal control on each injector. Each zone is set individually in accord with different characteristics of compounds and production conditions.

5. Precise transmission system with the sliding structure driven precisely by servomotor control system; the movement of the injection unit is smooth, and the positioning is fast and accurate.

Mold-Holder Unit

1. To meet various productions, the mold-holder is designed to be suitable for different types of molds such as one mold one pair, one mold two pairs, one mold three pairs in small sizes.

2. The high clamping force of mold-holder is realized with hydraulic cylinders, which can automatically compensate the variation of mold thickness caused by temperature change.

3. The clamping system is equipped with two independent sets of cylinders at each station. The big hydraulic cylinders averagely distribute the high clamping force on the whole surface of the mold to avoid flash.

4. The mold open stroke is long to make collecting parts and cleaning mold easily.

5. There are independent temperature control units for up and down mold plates in each mold-holder. The temperature of each mold is controlled with high precision to produce parts with stable quality.



Specifications

Machine model

JL-198-4S

Mould-clamping Unit

Work station



4

Clamping force

TON

190

Mould-holder dimensions

MM

330*600*2

Mould height

MM

100-250

Opening stroke

MM

350

Injection Unit

Injector

SET

2

Screw diameter

MM

60/65

Max.injection volume

cm3

950

Injection pressure

kg/cm2

1000

Screw rotation speed

R.P.M

0-165

Electricity Consumption

Heating power of injector

KW

13

Hydraulic unit motor

KW

33.5

Heating board of mold

KW

62

Total electric consumption

KW

108.5

Temperature control

Section

4

Dimension and Weight

Machine dimension(L*W*H)

M

7*4.7*3

Machine weight

TONS

16

*Note:Above data only for reference.

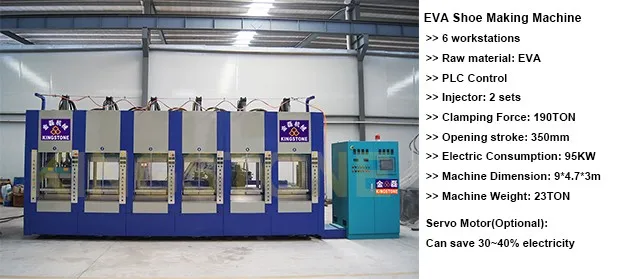

Machine Details





Advantages



1. By computer, Electrical box, PLC control---more simple,fast and precision.
2. It is working with eva foam granules. --- can produce light weight, soft, comfortable shoes.
3. Computerization in analysis and design---the machine is well in stability.
4. Conformed to human engineering in design---it features operational compatibility.
5. It could be equipped with servo system. --- can save 30~40% electricity.



Finished Products











After-Sales Service


1. Two years warranty provide.

2. Free for machine installation. The engineer will go to your factory for machine installation, and tell your workers how to oeprate machine and make shoes.

3. You can send your engineer to our factory for training.

4. Any questions for the machine, we are glad to help.

5. Will give the solution asap if the machine has questions.

Packaging & Shipping



Trade term: FOB,CIF,EXW
Payment terms: T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition: 30% T/T deposit in advance. 70% T/T balance before delivery.
Delivery time: 25-35days working days after deposit.
Packing: One 40HQ Container for this machine.
Shipment: By Sea.
